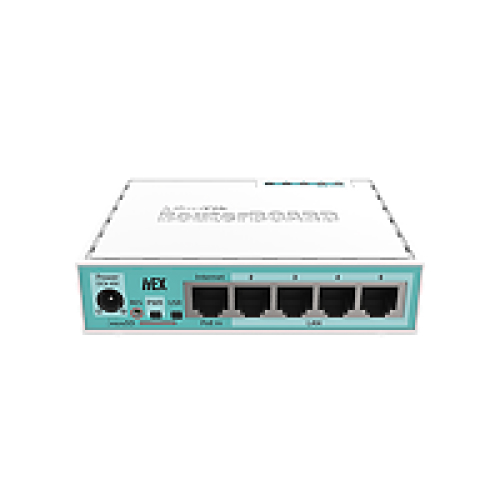

hEX is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a full size USB port. This new updated revision of the hEX brings several improvements in performance.

  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
Details
Product code RB750Gr3
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
Switch chip model MT7621A
Dimensions 11.3×8.9×2.8cm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 60°C
IPsec hardware acceleration Yes
Suggested price ₹5299

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 10 W
Max power consumption without attachments 5 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V

Ethernet

Details
10/100/1000 Ethernet ports 5

Peripherals

Details
Memory card type microSD
Memory Cards 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20
Document Action
Brochure Open
Quick Guide Open
User Manual Open
RouterOS current release Download
RouterBoot firmware Download
Block Diagram with disabled switching Open
Block Diagram with enabled switching Open
RouterOS software manual Open
Declaration of conformity (CE) Open

Ethernet test results

RB750Gr3 MT7621A (880Mhz) 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 145.3 1764 446.8 1830.1 658.6 358.3
Bridging 25 bridge filter rules 118.4 1437.8 122.2 500.4 121.5 66.1
Routing none (fast path) 148.4 1802.2 450.1 1843.6 601.2 327.1
Routing 25 simple queues 114.5 1391 119.3 488.5 119.3 64.9
Routing 25 ip filter rules 63.1 766.4 64.8 265.2 64.4 35
  1. All tests are done with Xena Networks specialized test equipment (XenaBay), and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0.1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB750Gr3 MT7621A IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 41.9 469.3 42.3 173.3 41.5 21.2
256 tunnels AES-128-CBC + SHA1 41.9 469.3 43.7 179 42.7 21.9
256 tunnels AES-128-CBC + SHA256 42.2 472.6 44.4 181.9 42.7 21.9
256 tunnels AES-256-CBC + SHA1 32 358.4 40 163.8 40.5 20.7
256 tunnels AES-256-CBC + SHA256 32.1 359.5 39.7 162.6 40.5 20.7
  1. All tests are done with Xena Networks specialized test equipment (XenaBay), and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0.1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

hEX is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a full size USB port. This new updated revision of the hEX brings several improvements in performance.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880MHz CPU and 256MB RAM, capable of all the advanced configurations that RouterOS supports.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

Dimensions 11.3 × 8.9 × 2.8 cm
